See exactly what Resin reports.

Six downloadable runs show literal error, warning, informational, and total counts. They are useful for understanding Resin's checker output, not for certifying a different design.

Check runs: 6
Zero-finding runs: 2 / 6
Reported findings: 241
Last verified: 2026-07-12

Complete JSON Summary CSV

Published runs

Four board checks and two schematic checks.

A zero count means the selected checker reported no findings for that exact file. It does not mean every possible rule or downstream requirement was exercised.

Native ERC and DRC results for six redistributable fixtures
Case	Check / result	Errors	Warnings	Info	Total	Source
canbus-shield-drc Four missing-courtyard warnings remain visible.	DRC 0 errors / 4 warnings	0	4	0	4	Fixture
digispark-drc Includes clearance, edge, hole, outline, courtyard, and silkscreen findings.	DRC 45 errors / 31 warnings	45	31	0	76	Fixture
shield-template-full-drc No findings from the invoked full-board DRC engine.	DRC 0 findings	0	0	0	0	Fixture
shield-template-small-drc No findings from the invoked full-board DRC engine.	DRC 0 findings	0	0	0	0	Fixture
canbus-shield-erc Four components and 26 nets checked.	ERC 30 errors / 20 warnings	30	20	0	50	Fixture
digispark-erc Thirty-five components and 19 nets checked.	ERC 73 errors / 31 warnings / 7 info	73	31	7	111	Fixture

In the product

Results stay visible by severity and category.

This recorded pre-routing USB-to-CAN FD board shows 54 findings across eight categories. It demonstrates the result interface; it is not presented as a passing or manufacturing-ready board.

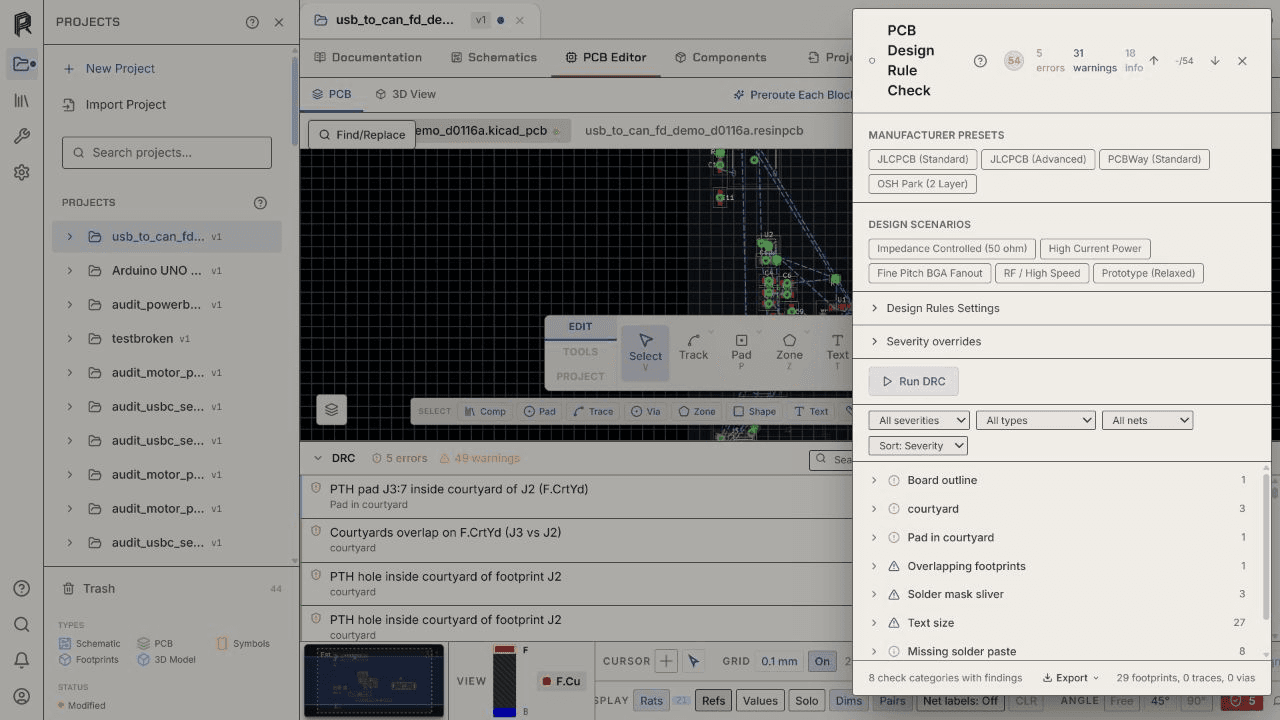

Native Resin DRC showing 54 findings for the USB-to-CAN FD pre-layout project — 5 errors / 31 warnings / 18 informational findings

Render of the CAN bus shield fixture used in a published DRC run — Downloadable fixture / 0 errors / 4 warnings

Finding explorer

Inspect all 241 report rows.

Filter by run, severity, diagnostic code, or rule category. Related rows can share one root cause, so totals are a starting point for review rather than a design score.

Loading 241 published findings...

Downloads

Use the source files and reports together.

Complete reports JSON Case summary CSV Findings CSV Method and limits

Use with your project

Run the same review on a representative board.

Confirm the rule set, resolve required findings, rerun after changes, and inspect manufacturing outputs independently. A passing fixture does not prove a different board is ready to build.
